How do you Remove Inside Door Handle?

Milk Man

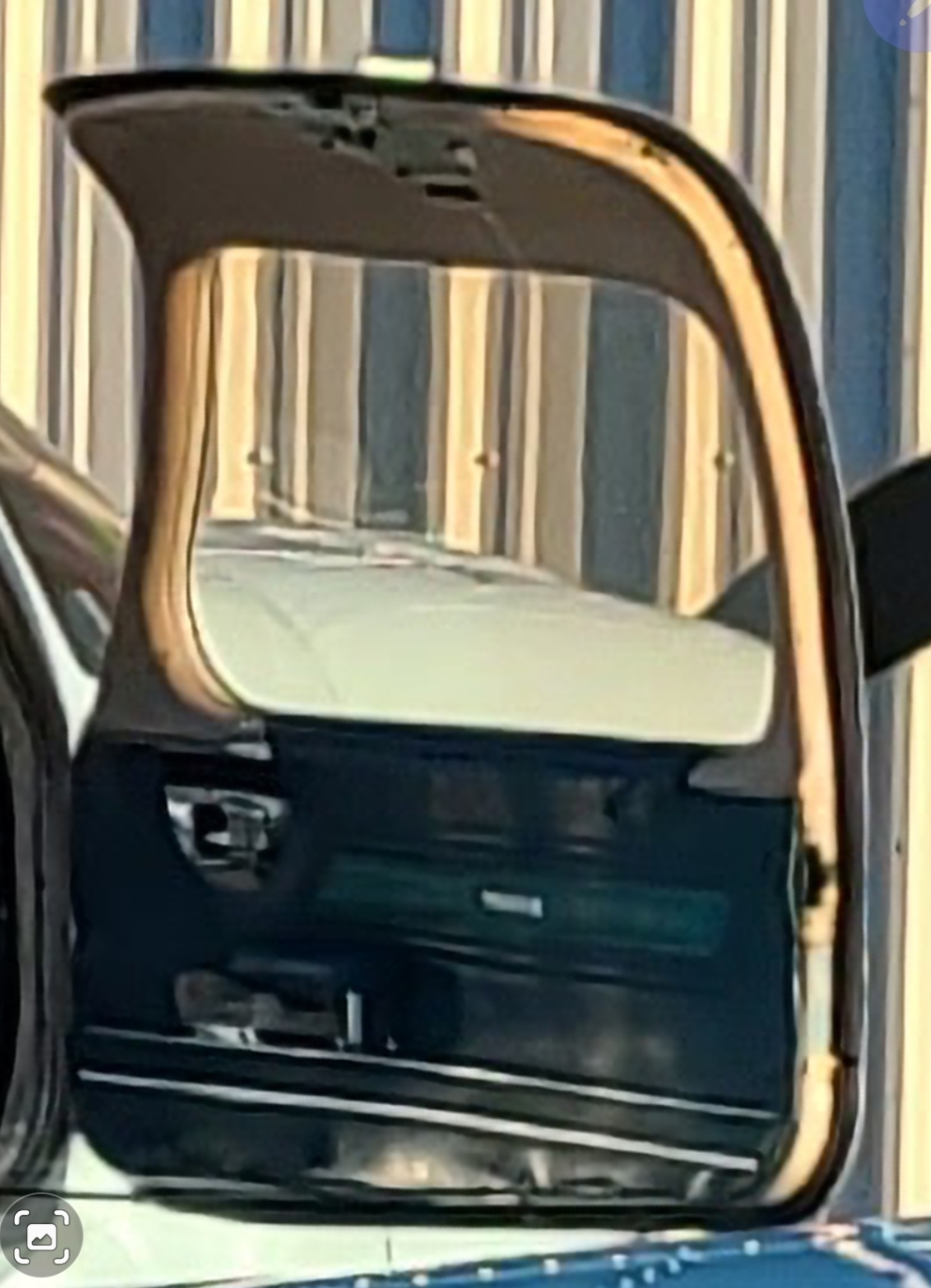

I am replacing the side panels in my 1974 Arrow and everything is self explanatory except the panel on the door. I have to remove the door handle to remove the panel and it is not obvious on how to remove it. Any suggestions?

Scott Sherer

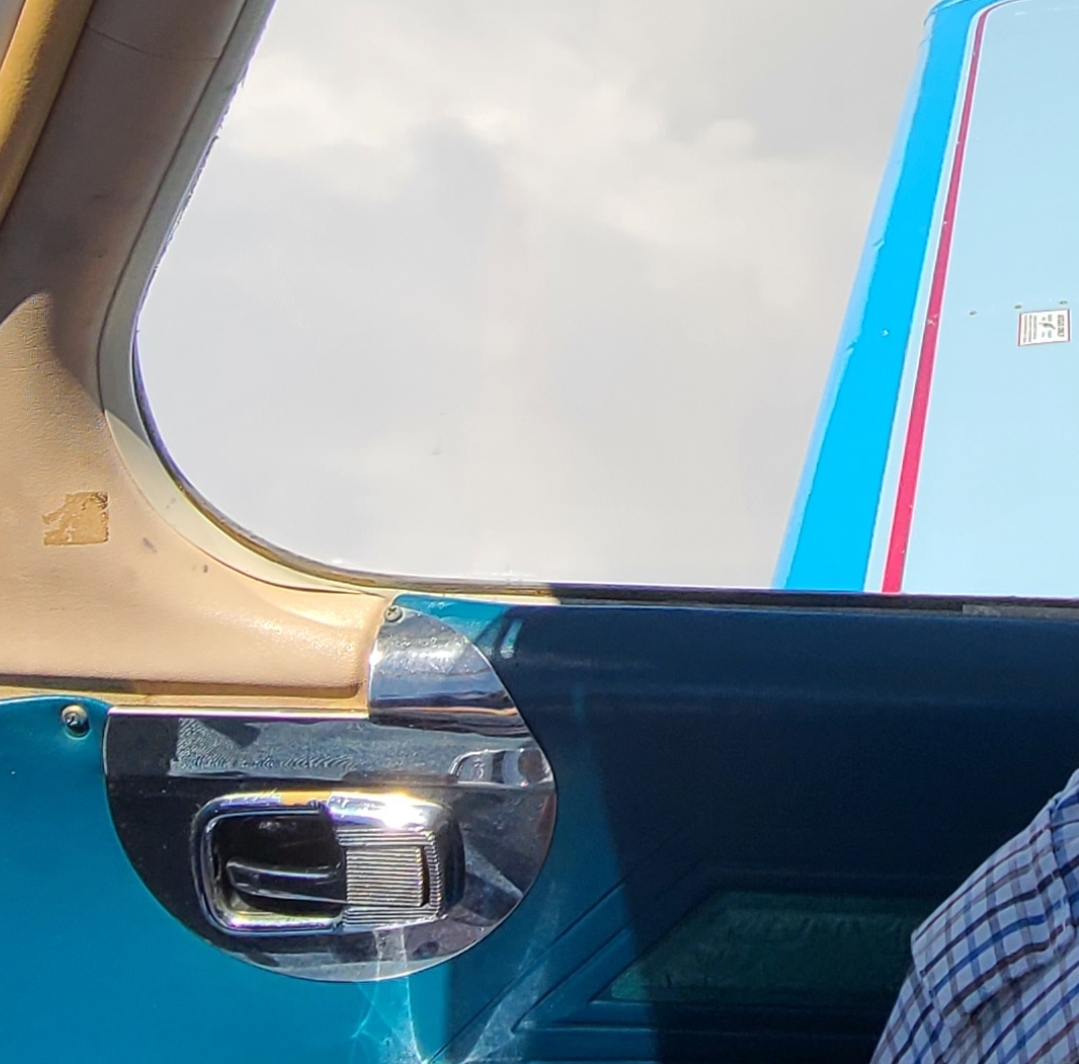

I think your '74 is probably different than my '77 Arrow. Can you post a picture?

Milk Man

It may have the Jesus Clip behind the panel.

Milk Man

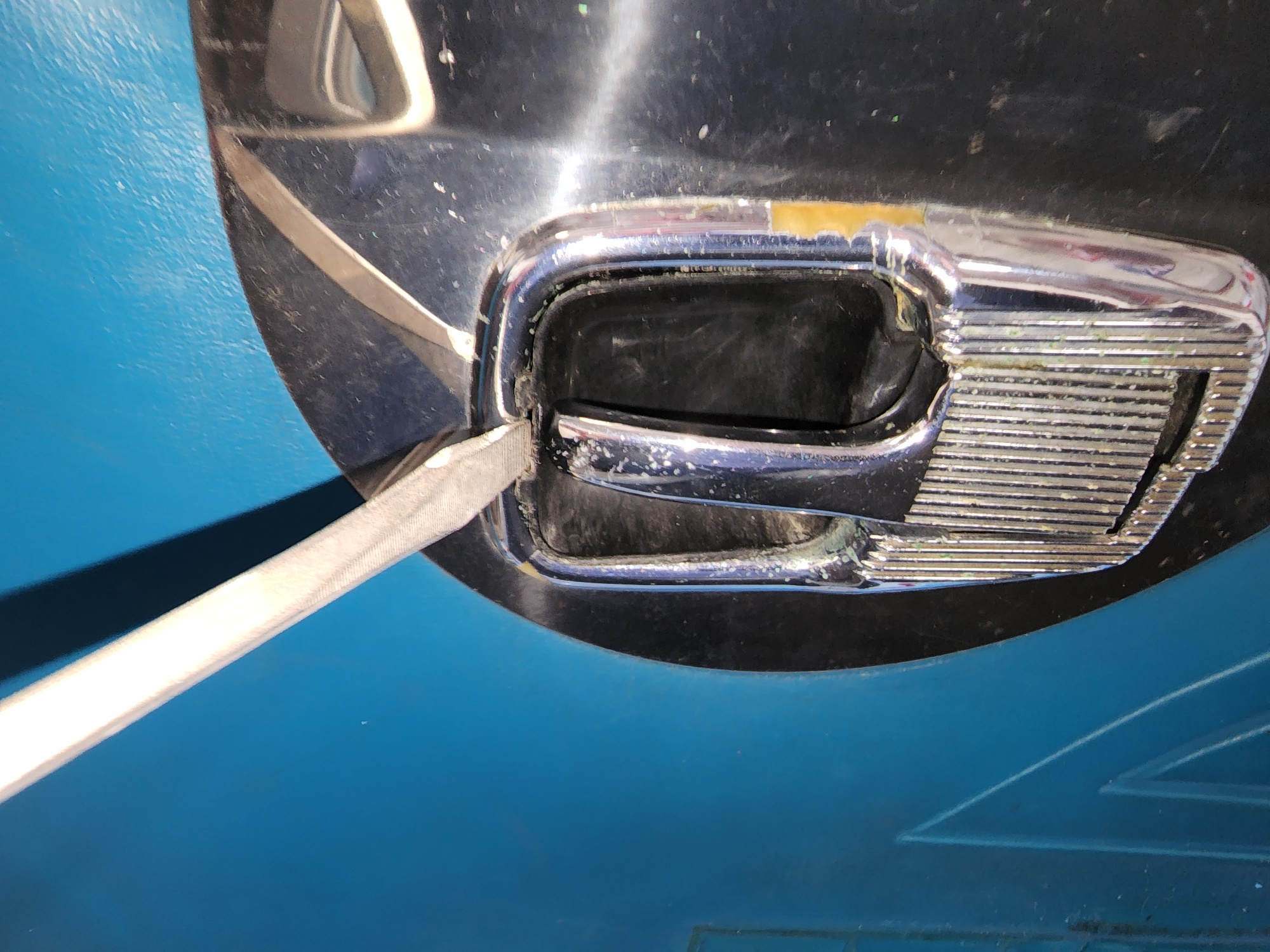

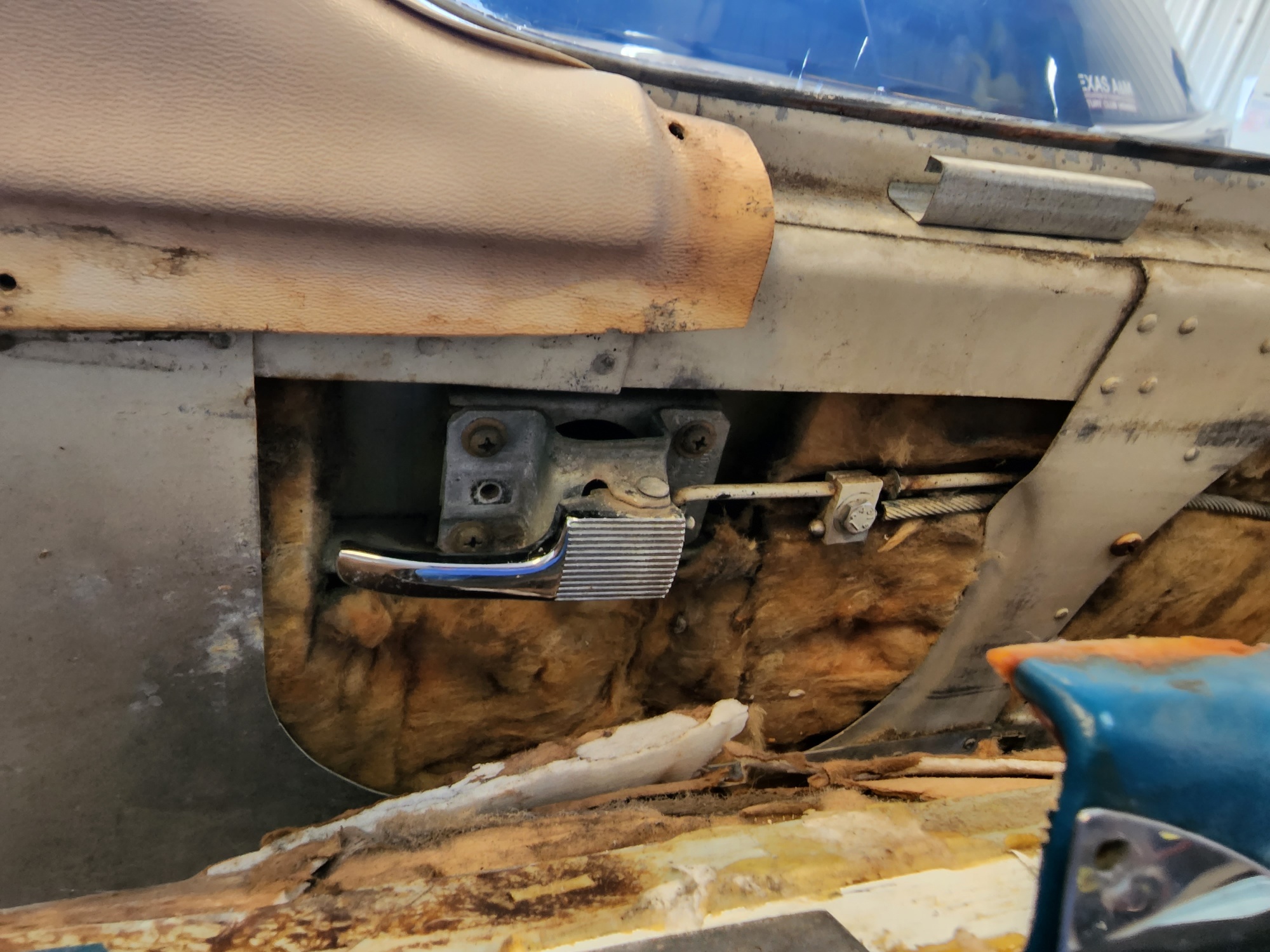

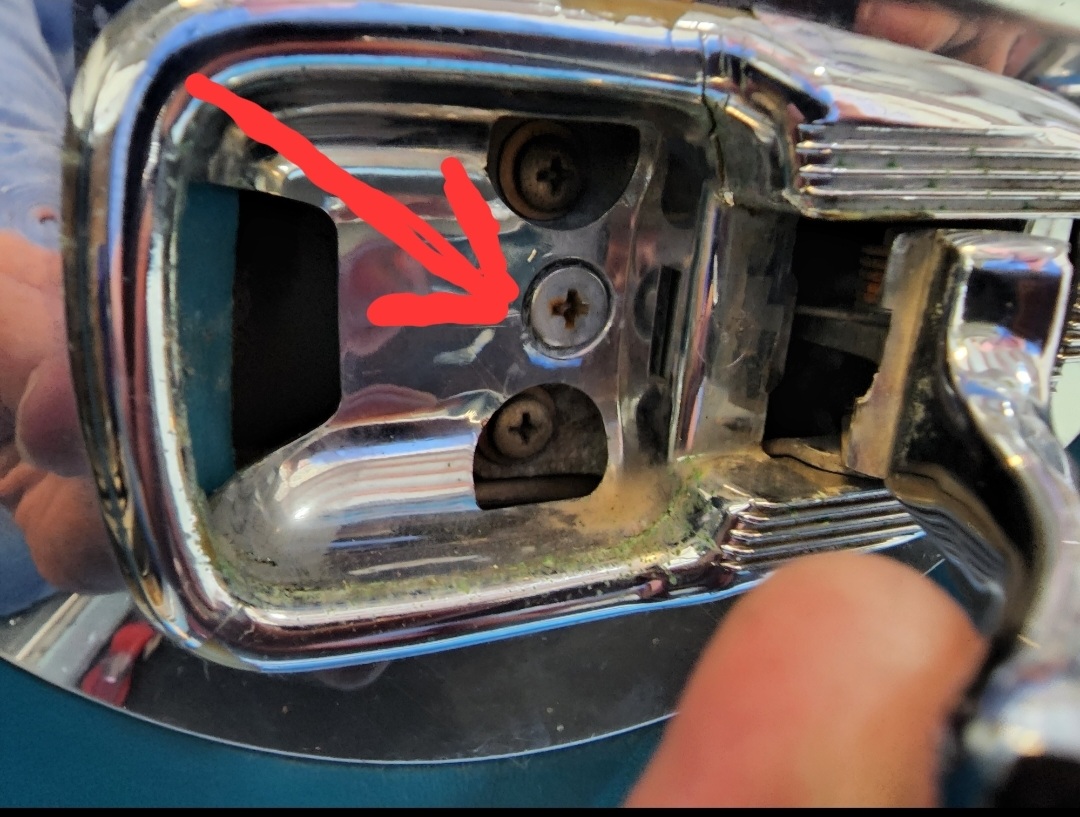

There is a Black plastic insert in the handle that has a slit to insert a Flat Head Screw Driver and lightly pry it out, then there is 1 Phillips Screw that holds it in. Less than 1 minute operation.

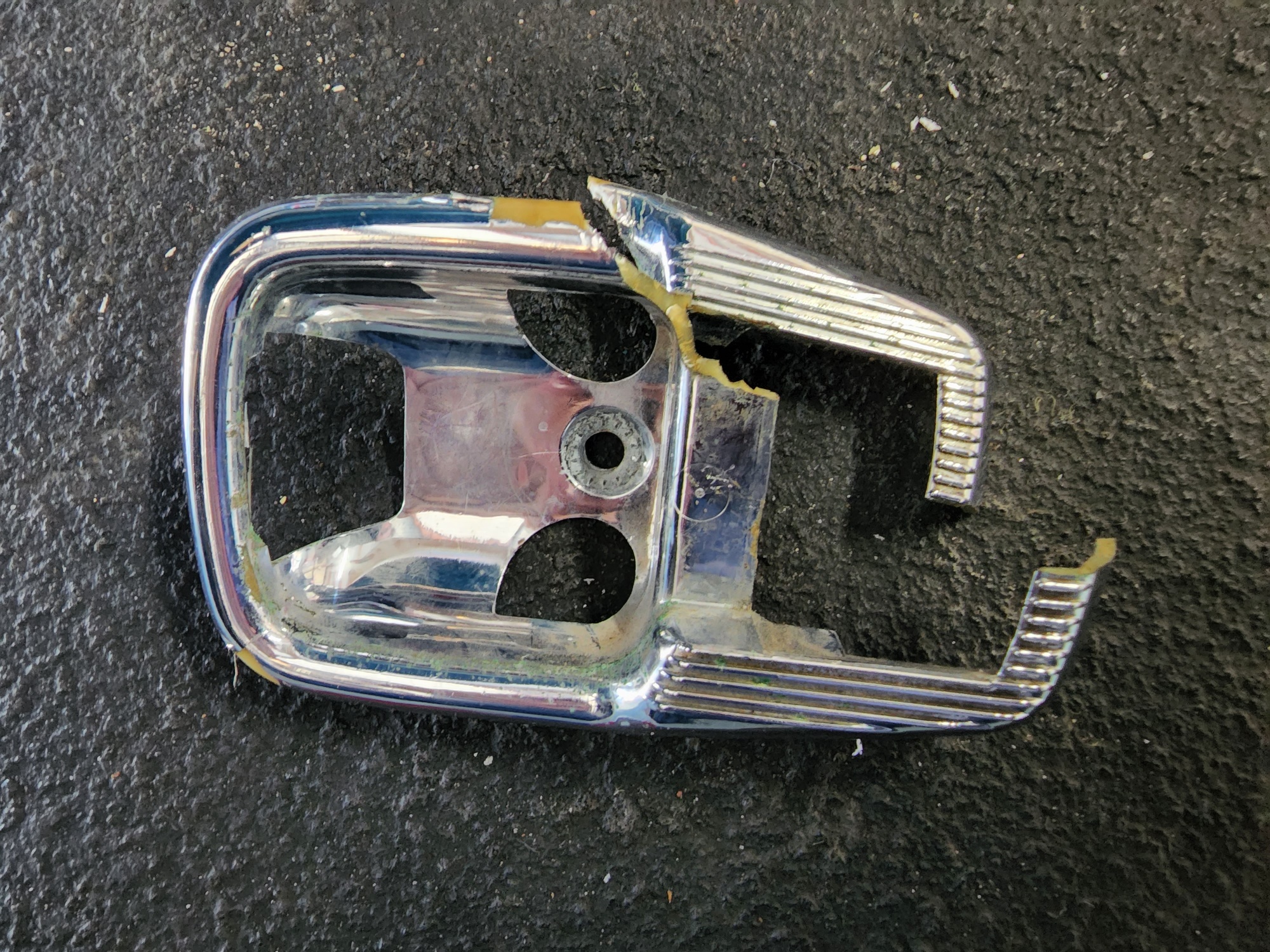

The Platic Trim Piece around the door handle broke when pulled it off. Be Very Careful.

Milk Man

Now I have to find this piece on Ebay, etc...

Johnjetman

That piece is a Volkswagen part.

Milk Man

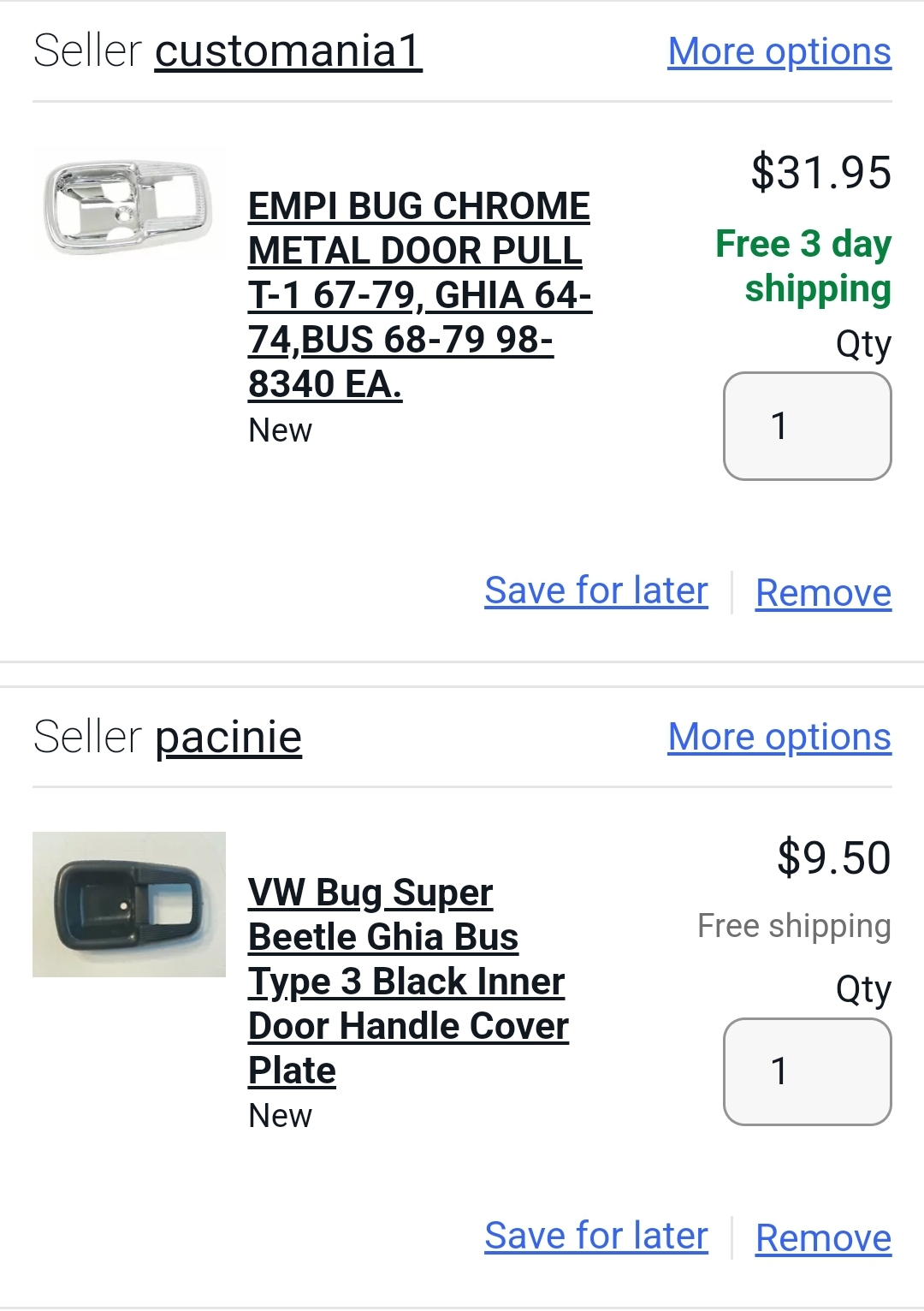

Found 2 options on Ebay. The Chrome one is just like the one on my plane.

Johnjetman

The one for $31.95 is actually metal and not plastic like your original.

Scott Sherer

Great work, Gents! :)

CherokeeCF-BLG

That was a very useful discussion. Parts sourcing amazing.

Rocky Landsverk

wow nice job everyone, thank you!

Milk Man

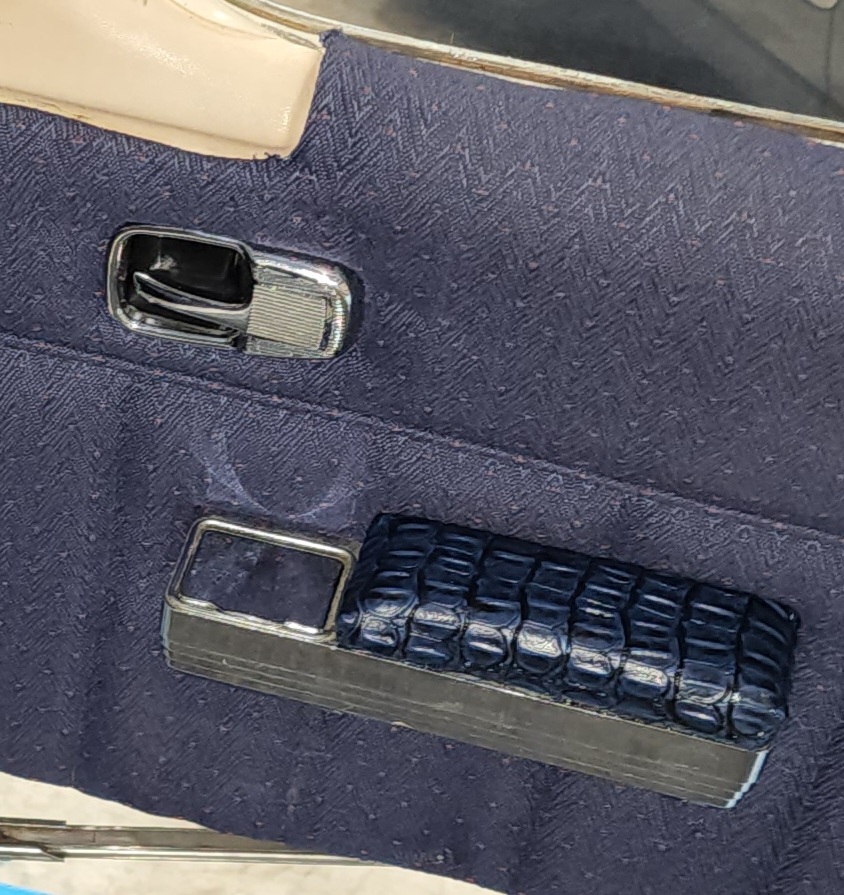

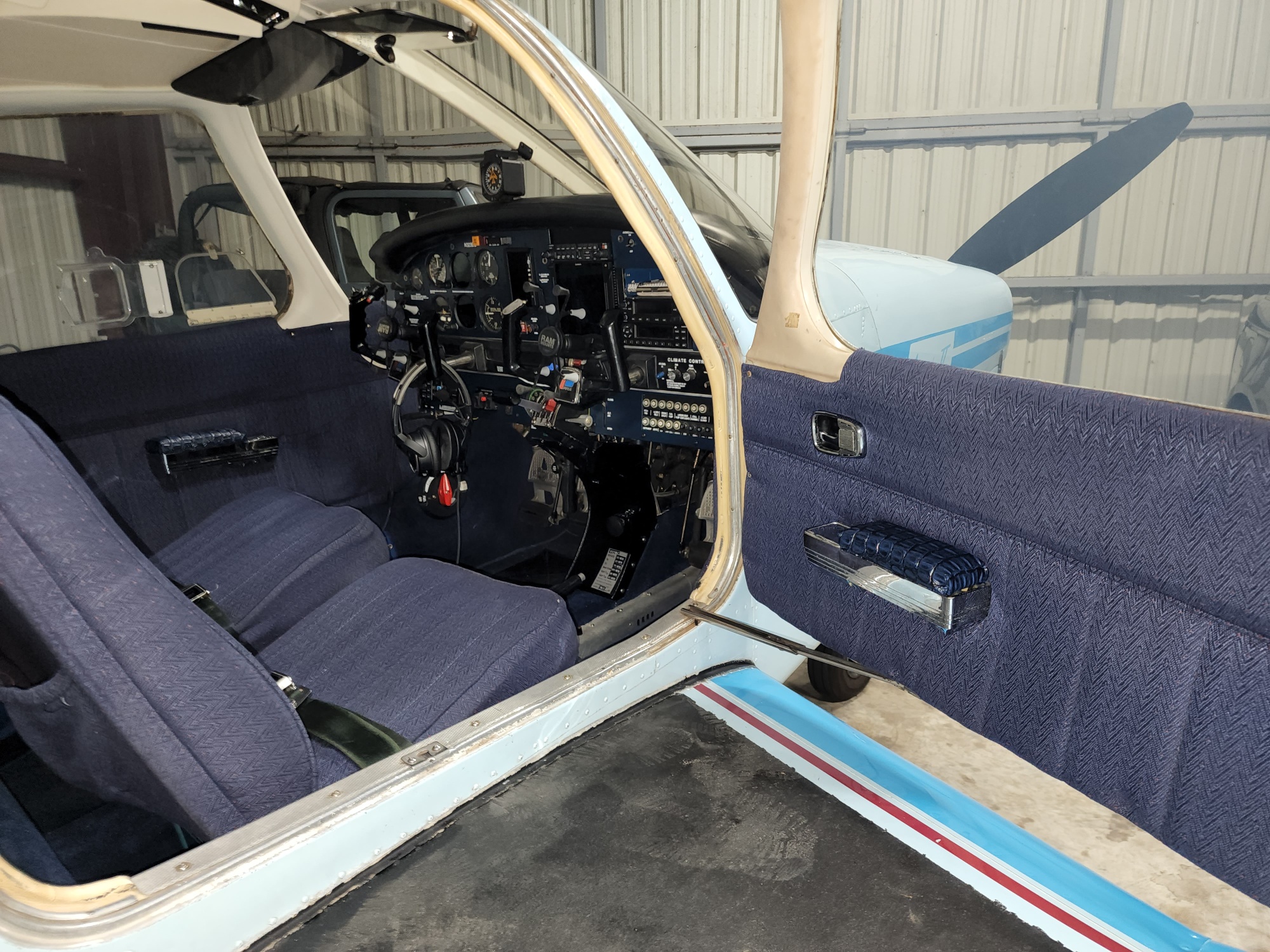

I actually bought both the Chrome Metal and the Black Plastic Handles. I used the Chrime Metal one. It did not come with the black plastic insert trim piece, so used my old one.

rammstein1903

https://www2.cip1.com/c33-s01476/

https://www2.cip1.com/c16-311-247-bk/

https://www2.cip1.com/vwc-113-837-020-bch/

The VW part numbers are on the backs of the parts themselves
